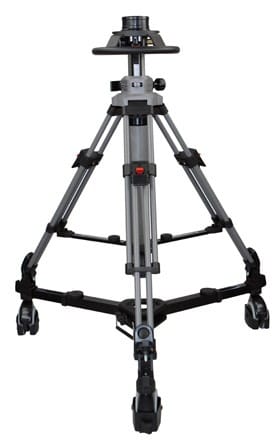

CARTONI P 020
Product Features
– Maximum pressure : 113 atm / 187 psi
– Maximum capacity : 125 kg / 55 lbs
– Total weight : 114 kg / 31 lbs
– on-shot stroke : 140 cm / 15,7 in
– Steering wheel diameter : 126 cm / 10.2 in
– Min height : 174 cm / 29 in
– Max height : 1161 cm / 63.3 in
– Wheels : 13 x 2 coupled
– Wheel diameter : 1100 mm / 3,9 in
– Doorway tracking width min : 167 cm / 26.3 in
– Doorway tracking width max : 197 cm / 38.1 in
Extremely compact and lightweight, this INNOVATIVE PEDESTAL is the ideal mate for mobile work and lightweight studio needs.
The same technical concept which has made the P50 so successful is performed in the CARTONI P20, an extremely rugged and precise dolly and the exagonal shaped central pneumatic column for maximum stability, smoothness and jerk-free operation.
The column supports a maximum payload of 25Kg (55 lbs) it includes an air pressure gauge, locking brake and safety air pressure valve adjusted at maximum 187 psi. The air pressure inside the column can be set in manually and adjusted to suit the exact weight of the camera configuration.
The foldable dolly features a six-position TRACK LOCK, foot operated brake on each of the 100mm wheel and cable guards. The system includes themanual air pump.
